Actuator

Actuator – KM Series

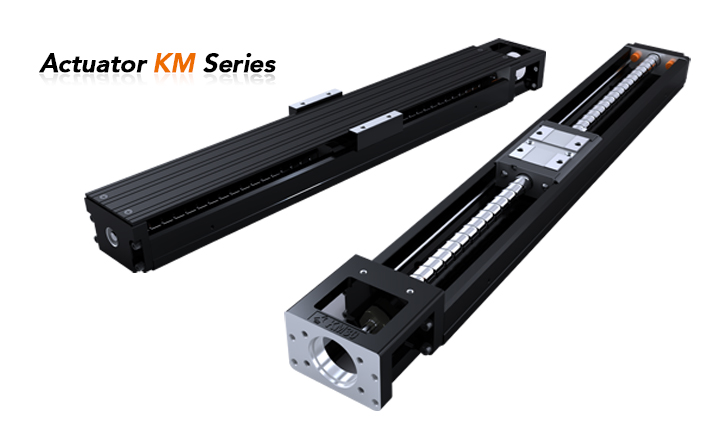

KM series consist of linear guideway unit and ballscrew unit. For saving space, PMI combine the carriage of linear guideway and nut of ballscrew to a integral Carriage-Nut. The carriage-nut cooperate with the U rail designed for high rigidity to achieve the high rigidity and high accuracy in the minimal space, especially to saving time of installation.

Moreover, the design of two rows with Gothic-arch groove and contact angle of 45°can bear four directional loading.

Category:
Characteristic Four Directional Equal Load
Saving Space
High Rigidity
High Accuracy
Dimension KM20 Standard Type / Cover Type (A,B Type)
KM26 Standard Type / Cover Type (A,B Type)
KM30 Standard Type / Cover Type (A,B Type)
KM30 Standard Type / Cover Type (C,D Type)
KM33 Standard Type / Cover Type (A,B Type)
KM33 Standard Type / Cover Type (C,D Type)
KM45 Standard Type / Cover Type (A,B Type)
KM45 Standard Type / Cover Type (C,D Type)
KM46 Standard Type / Cover Type (A,B Type)
KM46 Standard Type / Cover Type (C,D Type)
KM55 Standard Type / Cover Type (A,B Type)
KM65 Standard Type / Cover Type (A,B Type)
CAD file download KM DWG file download
KM DXF file download
KM 3D file download
